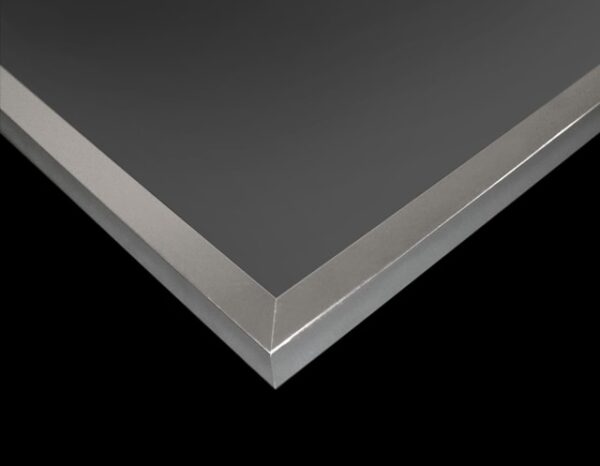

Narrow Aluminum Frame – BRW

Narrow Aluminum Frame – BRW

– Available in 10 different anodized aluminum finishes
– Brushed anodized aluminum finish designed to match appliances with Stainless Steel finish
– Large assortment of inserts
– Inserts thickness: 5/32″ (4mm)
– Standard or custom hinge and handle borings available upon request
– Interior Design solutions for applications in kitchens, office, bath and other interior spaces
– Easy to install: custom made to desired dimensions and specifications

Categories: Aluminum Doors, BRW Tags: BRW, Narrow Aluminum Frame

Description
Reviews (0)

Description

Applicable opening mechanisms for Narrow frame type

– Standard hinges: Minimum distance from frame edge to the center of the hinge hole is 2.3” (75.5mm). Standard distance from frame edge to the center of the hinge hole is 4” (102mm). Hinge hole diameter 26mm. We drill for standard hinge borings or custom hinge borings according to specifications.

We offer standard Blum hinges for narrow aluminum frames.

– Lift Systems: Blum Aventos HF, Blum Aventos HS, Blum Aventos HL, Blum Aventos HK, Blum Aventos HK-S, Hydraulic Lift Up System. We drill for any Blum Aventos system. Aventos system not included.
